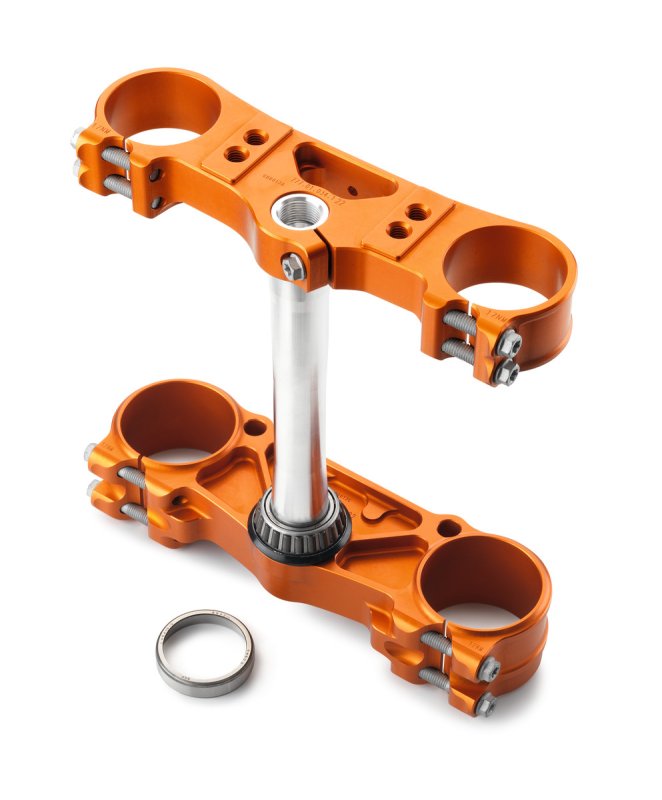

TRIPLE CLAMP [7810199902204]

Color differences between the upper and lower triple clamp cannot be technically ruled out.

Elegant anodised surface
CNC milled aluminum triple clamp
Optimally tuned steering stem stiffness
100% alignment of the fork tubes
Ideal flexibility – precisely customised to the WP fork
Including steering stem with steering head bearing already pressed on

Required items for installation on SX models from model year 2016:
Handlebar mount kit 78901939044/144/244/344/444 or
PHDS SXS07125200

For use on Enduro MY21 and later (EU Version), the Factory fuel tank cap vent is required

OFFSET:22 mm

【SX 2013-2022】【XC 2016-2022】【EXC 2014-2023】【XC-W 2014-2023】

SPAREPARTS

Triple clamp [7770113202204]
Triple clamp [7720103502204]
Tapered roller bearing [54201081100]
O-ring support with sealing lip [77701084000]
O-RING 25X3,55 NBR70 05 [0770025035]
Hexagonal bolt with external hexagon with collar [0025080506]
Hexagonal bolt with external hexagon with collar M8X40 ISA 40 [0025080406]
Hexagonal bolt with external hexagon with collar M8x25 [0025080256S]
