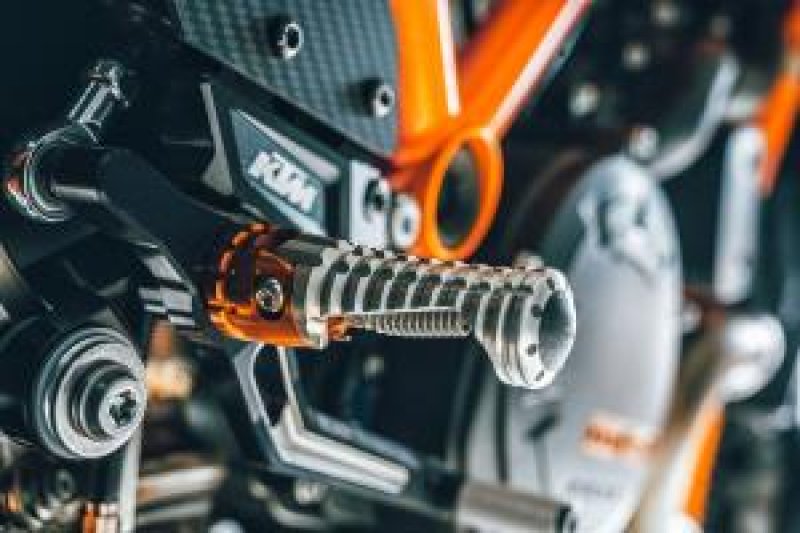

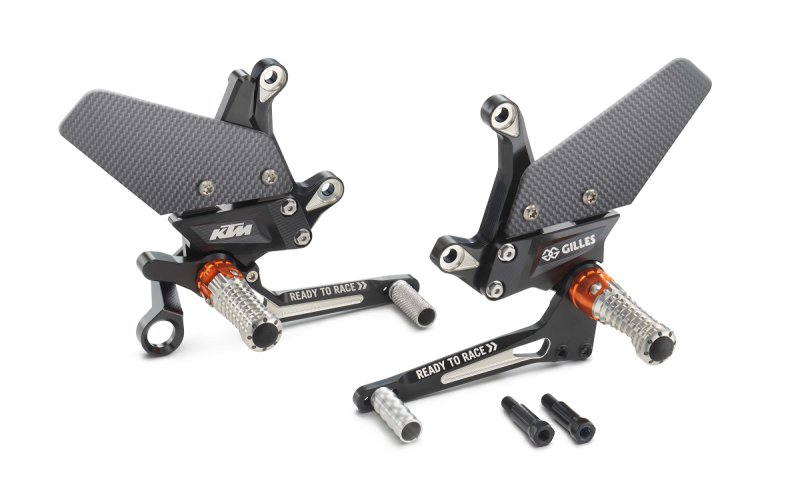

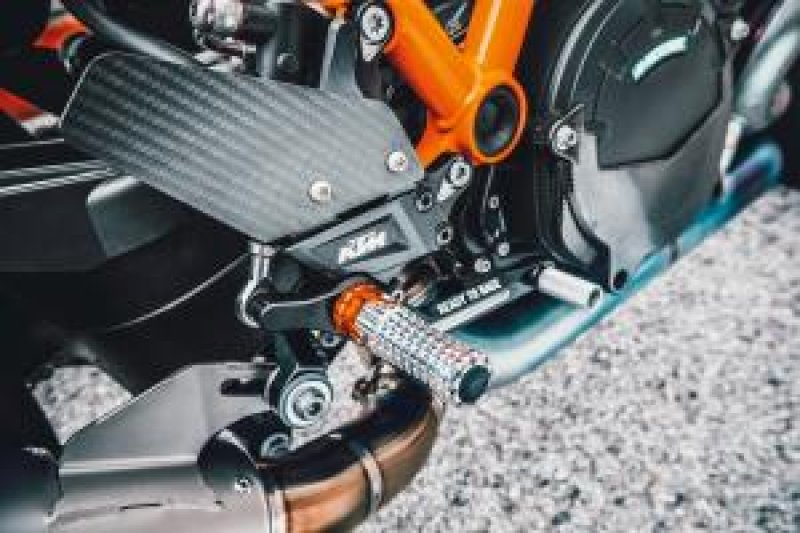

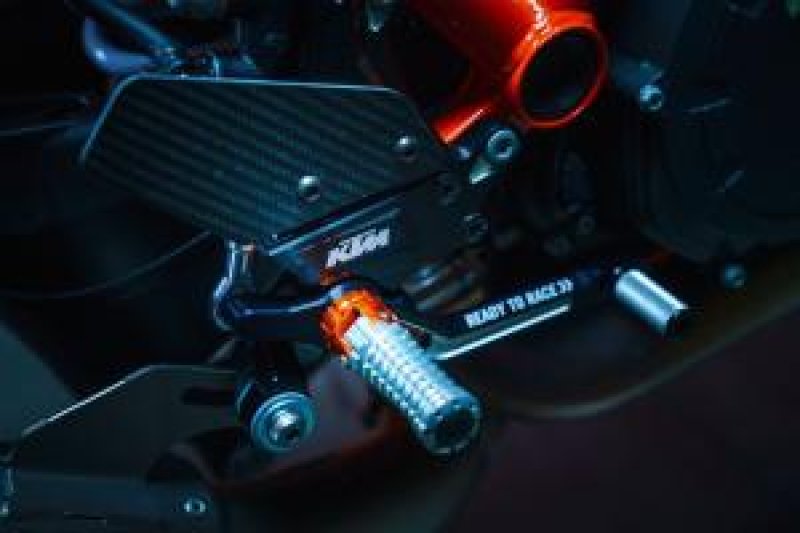

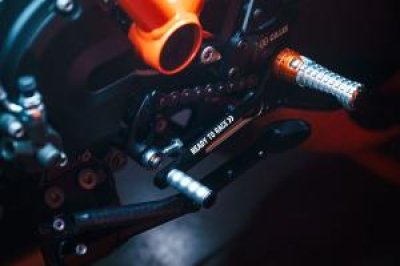

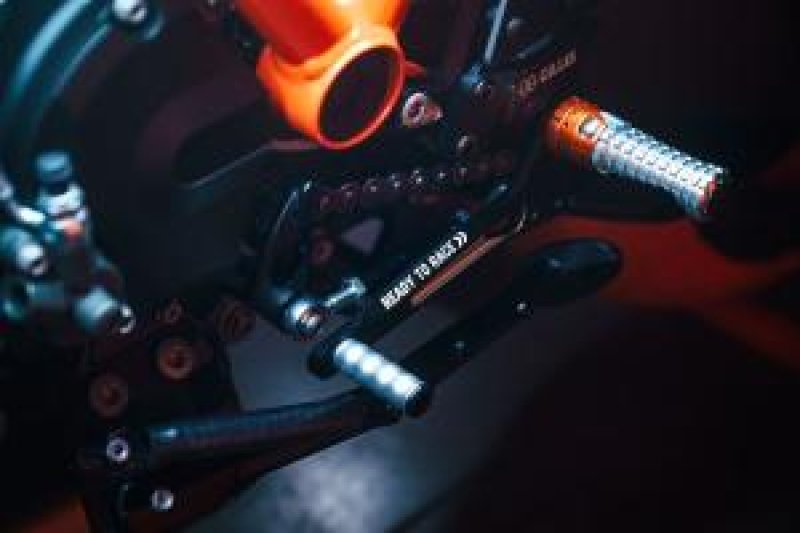

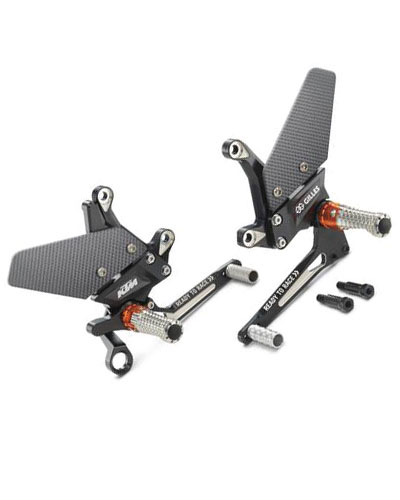

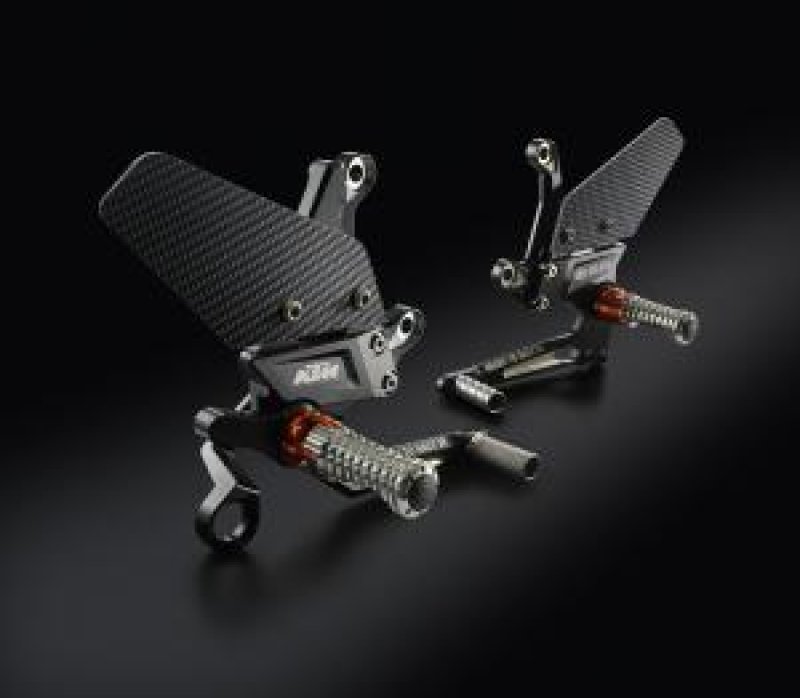

FACTORY FOOTPEG SYSTEM [61703937044]

CNC milled from high-strength aluminum
Elegant anodised surface
The adjustability offers the right ergonomics for every rider
Secure grip due to knurling
Enables increased tilting freedom
Carbon heel protectors included in delivery
Sportier ergonomics
Reverse shifting pattern possible
Developed for use on the race track
An absolute must for every ambitious biker
Highest quality workmanship
High-quality look
Laser-engraved logo
Visual highlight with technical and ergonomic added value
Race look

Adjustable to 12 different positions
Standard position of the footpegs is the same like on the serial footpeg system
Can be moved 24 mm upwards and also 8,5 mm or 17 mm backwards
The complete footpeg system can be twisted 12° upwards by using the alternative mounting point on the frame. This gives you more positions for the footpeg

【1390 SUPER DUKE R EVO 2024-】
【1290 SUPER DUKE R /EVO 2020-2023】

SPAREPARTS

Silencer bracket [61703988000]

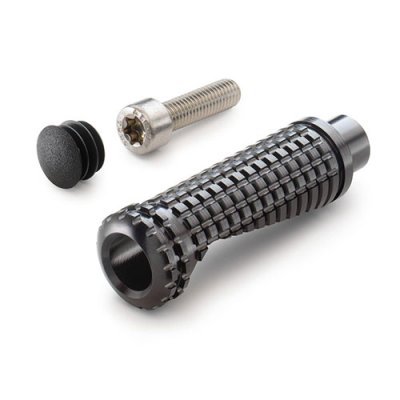

Footpeg right [61703941033]
Footpeg left [61703940033]
Footbrake lever step plate [61713951033]
Gear shift lever [61734931033]
Gear shift lever step plate [61734932033]
Screw kit left [61703938010]
Screw kit right [61703939010]
Spacer washer 12x6x6 [0800000600601]
Spring for brake lever [61713950050]
Fitting screw M6x17 [0900000601700]
Spring bolt [61703939060]
Screw M6x28 [0900000602800]
Shift rod adapter [61734936000]
Set screw M5x12 [0040280501200]
M6x10 screw [0900000601001]
Foot brake lever [61713950133]
